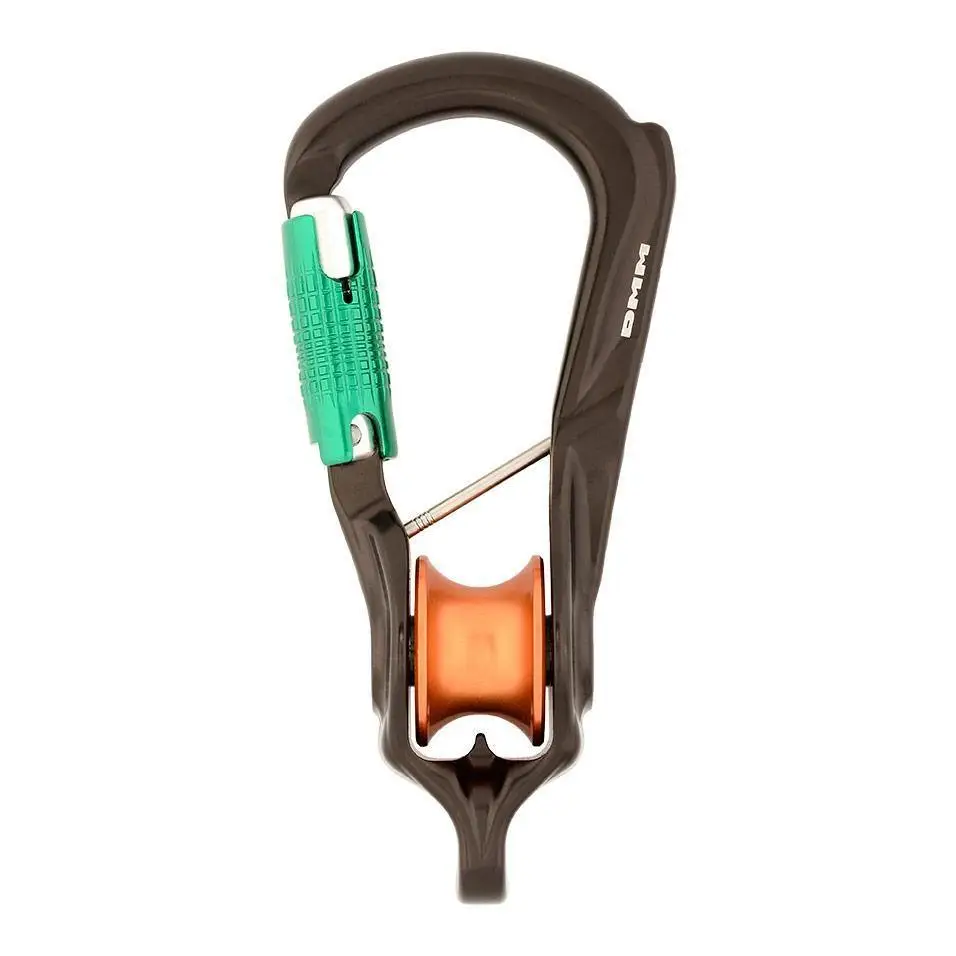

DMM Revolver Rig - 3 Way

A connector with an integrated pulley sheave. It features a high-efficiency roller bearing sheave(s), threaded removable captive bar and a full-strength textile friendly becket. The uniquely profiled spine and captive bar aid in maintaining correct orientation. The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.

Features

• High-efficiency roller bearings
• Removable captive bar
• iD Optional
• Keylock nose
• Large tread diameter

Specifications

• MBS - 25kN
• WLL - 5kN
• Dimensions - 76 x 160mm
• Weight - 203g
• Rope Dia - 7 - 13mm
• EN12278:2007, EN362:2004
